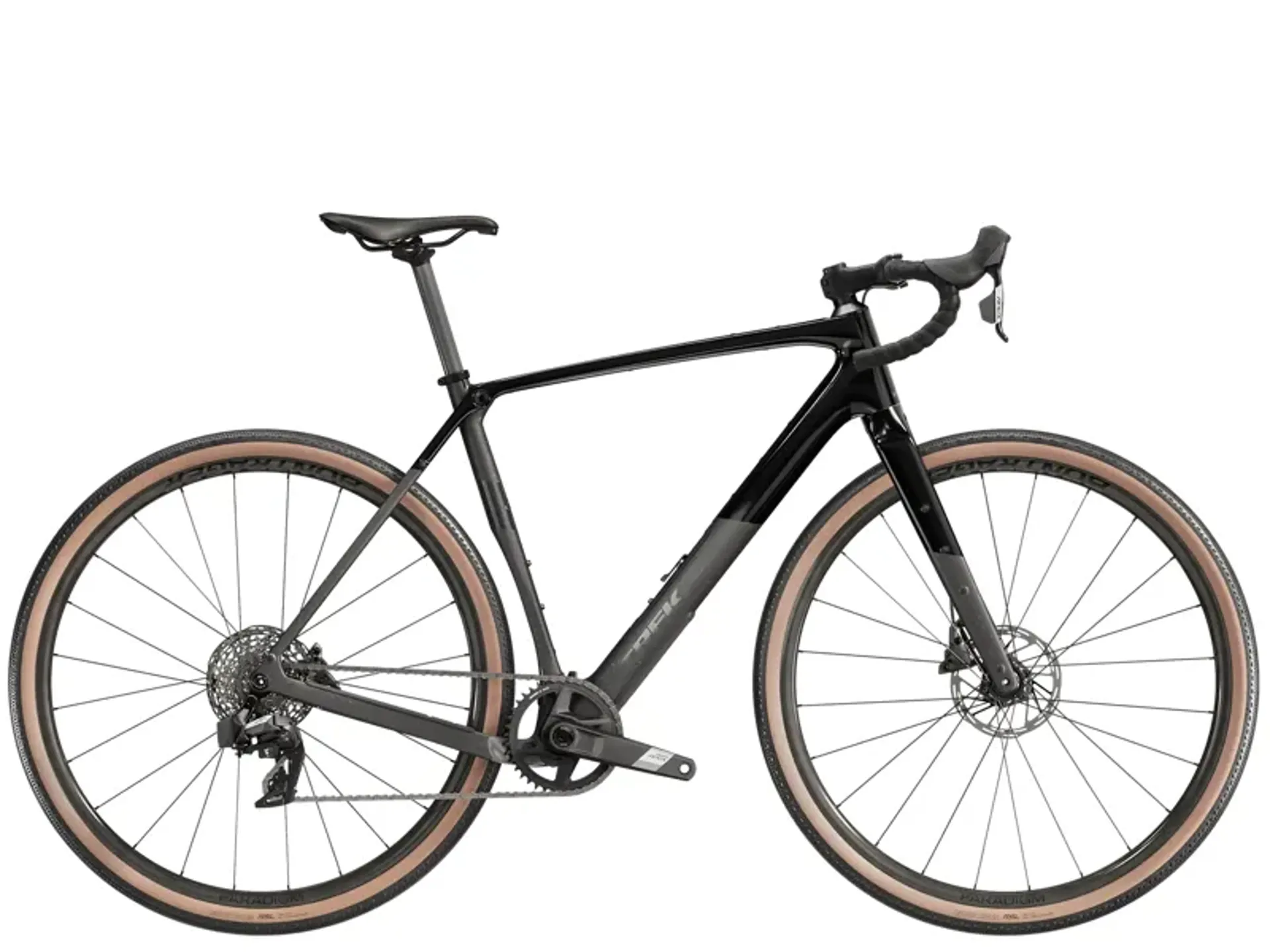

Trek Checkpoint SL 5 AXS Gravel Bike In Trek Black/Matte Carbon Smoke

Season:2025

Brand:Trek

Code:47071BLK

The Checkpoint SL 5 AXS Gen 3 is an adventure-ready carbon gravel bike built to roll into the distant horizon.

Its lightweight carbon frame is designed with comfort-focused geometry, room for beefy 50 mm tyres (as measured), and plenty of frame and fork mounts. Plus, IsoSpeed comfort technology helps soak up jarring road vibrations, helping you float over chatter and potholes. It comes equipped with a wireless 12-speed SRAM Apex XPLR AXS drivetrain to deliver plenty of gears for exploring the dusty road.

It's right for you if...You want a carbon gravel bike for exploring the beyond, and want to save on parts you can upgrade over time. You want the gravel-smoothing benefits of IsoSpeed tech that soaks up chatter from below so you can ride stronger for longer and plenty of mounts to carry all your gear and hydration.

The tech you get - A 500 Series OCLV Carbon frame with a carbon fork, internal downtube storage, frame and fork mounts, and clearance for 50 mm tyres (as measured). A 12-speed 1x SRAM Apex XPLR AXS fully wireless drivetrain, hydraulic disc brakes, carbon seat post, and Tubeless Ready Bontrager Paradigm SL wheels with 42 mm tyres.

The final word - When you're ready to load up and explore the road less travelled, reach for the Checkpoint SL 5 AXS Gen 3. This capable and comfortable gravel bike balances price and performance with a blend of components that deliver reliably and a frame that's packed with road-smoothing features.

Features:
  • The Checkpoint's Gravel Endurance geometry lets you sit higher up and features a shorter reach to keep you comfortable on all-day gravel adventures, light singletrack, bike-packing trips and more
  • Road-smoothing IsoSpeed comfort tech soaks up vibration from rough surfaces to keep you feeling fresher for longer
  • A SRAM Apex XPLR AXS 12-speed drivetrain offers precise, fully wireless shifting that's made for the roughest roads
  • Clearance for 50 mm tyres (as measured) means that you can add extra traction and cushion for rowdy gravel roads
  • You can haul it all with large internal frame storage and mounts galore on the frame and fork for hydration, front and rear racks, mudguards and Adventure Bags that were designed to perfectly fit the Checkpoint
  • Dropper post and suspension fork compatible (except size XS)
Technical Information
  • Frame
    500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle
  • Fork
    Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle
  • Max Compatible Fork Travel
    40 mm (XS: compatible with rigid fork only)
  • Wheel Front
    Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 100x12 mm thru axle
  • Wheel Rear
    Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 142x12 mm thru axle
  • Hub Front
    Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
  • Skewer Front
    Bontrager Switch chamfered thru axle, removable lever
  • Hub Rear
    Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
  • Skewer Rear
    Bontrager Switch chamfered thru axle, removable lever
  • Rim
    Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
  • Spokes
    14 g stainless steel, black
  • Tyre Size XS, S, M, ML, L, XL
    Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
  • Tyre Size XS, S, M, ML, L, XL
    Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42 mm
  • Tyre Part
    Bontrager TLR sealant, 180 ml/6 oz
  • Rim Strip
    Bontrager TLR
  • Max Tyre Size
    50 mm without mudguards, 42 mm with mudguards
  • Battery
    SRAM eTap battery pack (with charger)
  • Rear Derailleur
    SRAM Apex XPLR eTap AXS, 44T max cog
  • Crank Size XS, S
    SRAM Apex 1, 40T, DUB Wide, 165 mm length
  • Crank Size M
    SRAM Apex 1, 40T, DUB Wide, 170 mm length
  • Crank Size ML, L
    SRAM Apex 1, 40T, DUB Wide, 172.5 mm length
  • Crank Size XL
    SRAM Apex 1, 40T, DUB Wide, 175 mm length
  • Bottom Bracket
    SRAM DUB, T47 threaded, internal bearing
  • Cassette
    SRAM XPLR PG-1231, 11-44, 12-speed
  • Chain
    SRAM Apex, 12-speed
  • Max Chainring Size
    1x:44 2x: 46/30
  • Saddle Size XS, S
    Verse Short Comp, steel rails, 155 mm width
  • Saddle Size M, ML, L, XL
    Verse Short Comp, steel rails, 145 mm width
  • Seatpost
    Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
  • Handlebar Size XS
    Bontrager Elite Gravel, alloy, 40 cm width
  • Handlebar Size S, M
    Bontrager Elite Gravel, alloy, 42 cm width
  • Handlebar Size ML, L
    Bontrager Elite Gravel, alloy, 44 cm width
  • Handlebar Size XL
    Bontrager Elite Gravel, alloy, 46 cm width
  • Handlebar Tape
    Bontrager Supertack Perf tape
  • Stem Size XS
    Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
  • Stem Size S
    Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
  • Stem Size M, ML
    Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
  • Stem Size L
    Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
  • Stem Size XL
    Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
  • Brake Rotor
    SRAM Paceline, rounded, CentreLock, 160 mm
  • Rotor Size
    Max brake rotor sizes: 180mm front and rear
  • Weight
    ML - 9.50 kg / 20.95 lbs (with TLR sealant, no tubes)
  • Weight Limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
