The Checkpoint SL 5 AXS Gen 3 is an adventure-ready carbon gravel bike built to roll into the distant horizon.
The Checkpoint SL 5 AXS Gen 3 is an adventure-ready carbon gravel bike built to roll into the distant horizon.
Trek

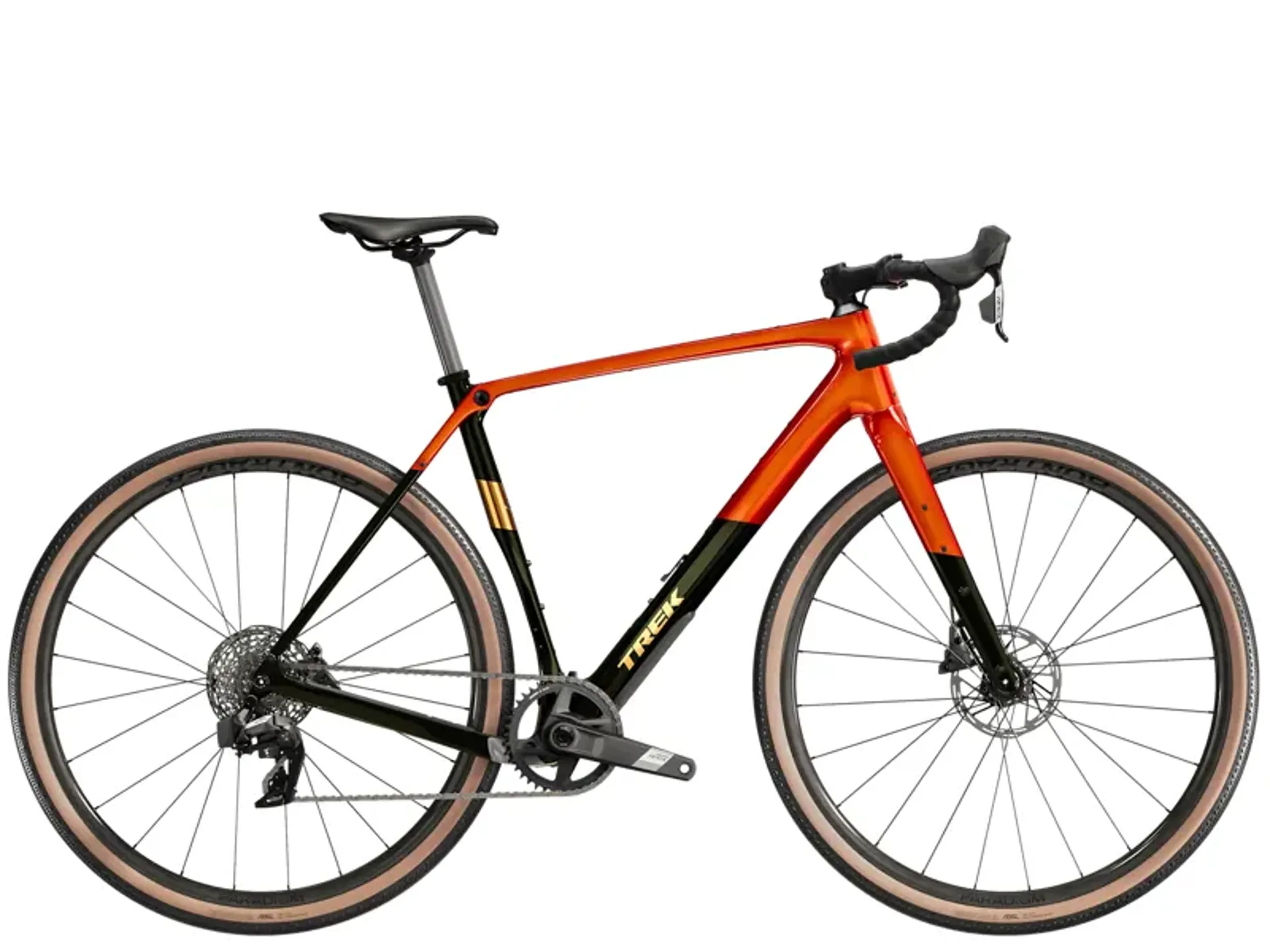

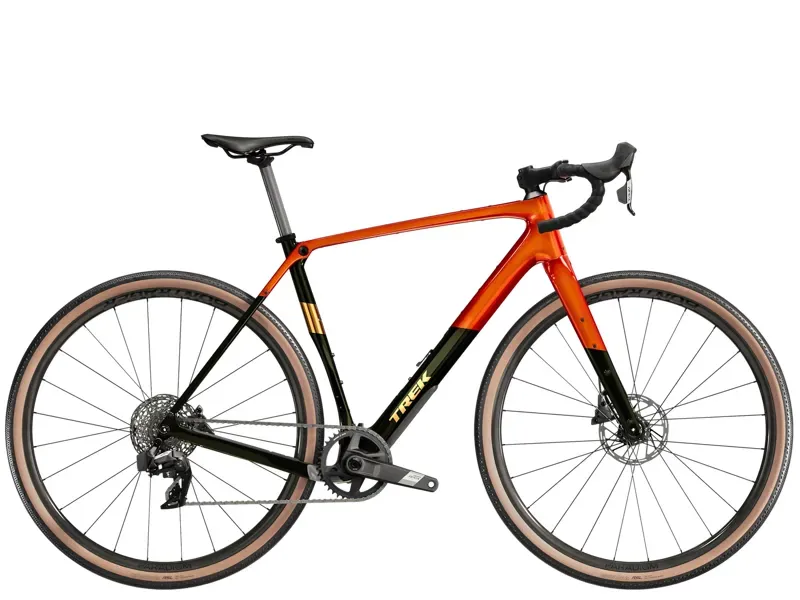

Trek Checkpoint SL 5 AXS Gravel Bike In Lava/Black Olive

£3,700.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

RETURNS

----

Our policy lasts 14 days. If 14 days have gone by since your purchase, unfortunately we can't offer you a store credit or exchange.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging, and must have all labels and tags attached. We cannot accept any returns without proof of purchase, this could be a paper receipt or a digital one registered to your customer account.

Several types of goods are exempt from being returned. Perishable goods such as food.

Additional non-returnable items:

  • Gift cards / Vouchers
  • Downloadable software products
  • Some health and personal care items

To complete your return, we require a receipt or proof of purchase.

Please do not send your purchase back to the manufacturer.

Store Credit Refunds (if applicable)

Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your store credit.

If you are approved, then your store credit will be processed, and a credit will automatically be applied to your customer account within a certain amount of days.

Late or missing refunds (if applicable)

If you haven’t received a refund yet, first check your bank account again. Then contact your credit card company, it may take some time before your refund is officially posted. Next contact your bank. There is often some processing time before a refund is posted.

If you’ve done all of this and you still have not received your refund yet, please contact us at bangor@evolution-bikes.co.uk.

Sale items (if applicable)

Only regular priced items may be refunded, unfortunately sale items cannot be refunded.

Exchanges (if applicable)

If you need to exchange an item, send us an email bangor@evolution-bikes.co.uk, once you have had a confirmation of the return send your item to:Evolution Bikes, Cyttir Lane,Bangor,Gwynedd,LL57 4DA.

Gifts

If the item was marked as a gift when purchased and shipped directly to you, you’ll receive a gift credit for the value of your return. Once the returned item is received, a gift certificate will be mailed to you.

If the item wasn’t marked as a gift when purchased, or the gift giver had the order shipped to themselves to give to you later, we will send a store credit to the gift giver and he will find out about your return.

Shipping

To return your product, you should mail your product to:Evolution Bikes, Cyttir Lane,Bangor,Gwynedd,LL57 4DA.

You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable. If you receive store credit or a refund, the cost of return shipping will be deducted from your store credit or refund.

Your refund will be processed once the items have been inspected once returned to us. All items must be retuned in as new condition for a full refund,.

Depending on your location, the time it may take for your exchanged product to reach you, may vary.

Trek Checkpoint SL 5 AXS Gravel Bike In Lava/Black Olive

Season:2025

Brand:Trek

Code:47071RED

The Checkpoint SL 5 AXS Gen 3 is an adventure-ready carbon gravel bike built to roll into the distant horizon.

Its lightweight carbon frame is designed with comfort-focused geometry, room for beefy 50 mm tyres (as measured), and plenty of frame and fork mounts. Plus, IsoSpeed comfort technology helps soak up jarring road vibrations, helping you float over chatter and potholes. It comes equipped with a wireless 12-speed SRAM Apex XPLR AXS drivetrain to deliver plenty of gears for exploring the dusty road.

It's right for you if...You want a carbon gravel bike for exploring the beyond, and want to save on parts you can upgrade over time. You want the gravel-smoothing benefits of IsoSpeed tech that soaks up chatter from below so you can ride stronger for longer and plenty of mounts to carry all your gear and hydration.

The tech you get - A 500 Series OCLV Carbon frame with a carbon fork, internal downtube storage, frame and fork mounts, and clearance for 50 mm tyres (as measured). A 12-speed 1x SRAM Apex XPLR AXS fully wireless drivetrain, hydraulic disc brakes, carbon seat post, and Tubeless Ready Bontrager Paradigm SL wheels with 42 mm tyres.

The final word - When you're ready to load up and explore the road less travelled, reach for the Checkpoint SL 5 AXS Gen 3. This capable and comfortable gravel bike balances price and performance with a blend of components that deliver reliably and a frame that's packed with road-smoothing features.

Features:
  • The Checkpoint's Gravel Endurance geometry lets you sit higher up and features a shorter reach to keep you comfortable on all-day gravel adventures, light singletrack, bike-packing trips and more
  • Road-smoothing IsoSpeed comfort tech soaks up vibration from rough surfaces to keep you feeling fresher for longer
  • A SRAM Apex XPLR AXS 12-speed drivetrain offers precise, fully wireless shifting that's made for the roughest roads
  • Clearance for 50 mm tyres (as measured) means that you can add extra traction and cushion for rowdy gravel roads
  • You can haul it all with large internal frame storage and mounts galore on the frame and fork for hydration, front and rear racks, mudguards and Adventure Bags that were designed to perfectly fit the Checkpoint
  • Dropper post and suspension fork compatible (except size XS)
Technical Information
  • Frame
    500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle
  • Fork
    Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle
  • Max Compatible Fork Travel
    40 mm (XS: compatible with rigid fork only)
  • Wheel Front
    Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 100x12 mm thru axle
  • Wheel Rear
    Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 142x12 mm thru axle
  • Hub Front
    Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
  • Skewer Front
    Bontrager Switch chamfered thru axle, removable lever
  • Hub Rear
    Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
  • Skewer Rear
    Bontrager Switch chamfered thru axle, removable lever
  • Rim
    Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
  • Spokes
    14 g stainless steel, black
  • Tyre Size XS, S, M, ML, L, XL
    Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
  • Tyre Size XS, S, M, ML, L, XL
    Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42 mm
  • Tyre Part
    Bontrager TLR sealant, 180 ml/6 oz
  • Rim Strip
    Bontrager TLR
  • Max Tyre Size
    50 mm without mudguards, 42 mm with mudguards
  • Battery
    SRAM eTap battery pack (with charger)
  • Rear Derailleur
    SRAM Apex XPLR eTap AXS, 44T max cog
  • Crank Size XS, S
    SRAM Apex 1, 40T, DUB Wide, 165 mm length
  • Crank Size M
    SRAM Apex 1, 40T, DUB Wide, 170 mm length
  • Crank Size ML, L
    SRAM Apex 1, 40T, DUB Wide, 172.5 mm length
  • Crank Size XL
    SRAM Apex 1, 40T, DUB Wide, 175 mm length
  • Bottom Bracket
    SRAM DUB, T47 threaded, internal bearing
  • Cassette
    SRAM XPLR PG-1231, 11-44, 12-speed
  • Chain
    SRAM Apex, 12-speed
  • Max Chainring Size
    1x:44 2x: 46/30
  • Saddle Size XS, S
    Verse Short Comp, steel rails, 155 mm width
  • Saddle Size M, ML, L, XL
    Verse Short Comp, steel rails, 145 mm width
  • Seatpost
    Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
  • Handlebar Size XS
    Bontrager Elite Gravel, alloy, 40 cm width
  • Handlebar Size S, M
    Bontrager Elite Gravel, alloy, 42 cm width
  • Handlebar Size ML, L
    Bontrager Elite Gravel, alloy, 44 cm width
  • Handlebar Size XL
    Bontrager Elite Gravel, alloy, 46 cm width
  • Handlebar Tape
    Bontrager Supertack Perf tape
  • Stem Size XS
    Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
  • Stem Size S
    Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
  • Stem Size M, ML
    Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
  • Stem Size L
    Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
  • Stem Size XL
    Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
  • Brake Rotor
    SRAM Paceline, rounded, CentreLock, 160 mm
  • Rotor Size
    Max brake rotor sizes: 180mm front and rear
  • Weight
    ML - 9.50 kg / 20.95 lbs (with TLR sealant, no tubes)
  • Weight Limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
