The Rail 9.8 is a long-travel carbon e-MTB that rips like the beefiest trail rigs and powers you right back up the mountain.
The Rail 9.8 is a long-travel carbon e-MTB that rips like the beefiest trail rigs and powers you right back up the mountain.
Trek

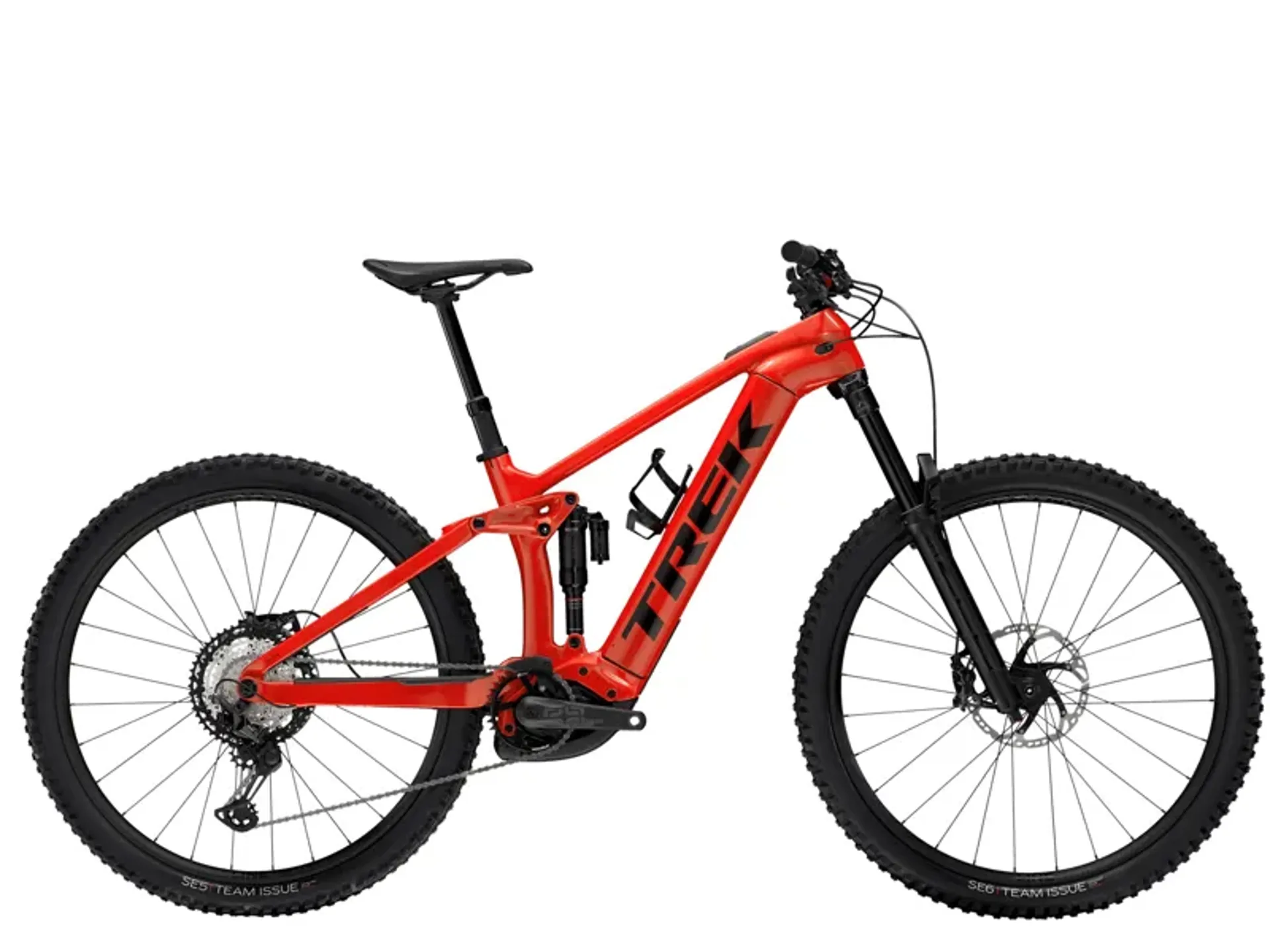

Trek Rail 9.8 XT Electric Mountain Bike in Lava Red

£7,400.00 £9,100.00 19% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

RETURNS

----

Our policy lasts 14 days. If 14 days have gone by since your purchase, unfortunately we can't offer you a store credit or exchange.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging, and must have all labels and tags attached. We cannot accept any returns without proof of purchase, this could be a paper receipt or a digital one registered to your customer account.

Several types of goods are exempt from being returned. Perishable goods such as food.

Additional non-returnable items:

  • Gift cards / Vouchers
  • Downloadable software products
  • Some health and personal care items

To complete your return, we require a receipt or proof of purchase.

Please do not send your purchase back to the manufacturer.

Store Credit Refunds (if applicable)

Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your store credit.

If you are approved, then your store credit will be processed, and a credit will automatically be applied to your customer account within a certain amount of days.

Late or missing refunds (if applicable)

If you haven’t received a refund yet, first check your bank account again. Then contact your credit card company, it may take some time before your refund is officially posted. Next contact your bank. There is often some processing time before a refund is posted.

If you’ve done all of this and you still have not received your refund yet, please contact us at bangor@evolution-bikes.co.uk.

Sale items (if applicable)

Only regular priced items may be refunded, unfortunately sale items cannot be refunded.

Exchanges (if applicable)

If you need to exchange an item, send us an email bangor@evolution-bikes.co.uk, once you have had a confirmation of the return send your item to:Evolution Bikes, Cyttir Lane,Bangor,Gwynedd,LL57 4DA.

Gifts

If the item was marked as a gift when purchased and shipped directly to you, you’ll receive a gift credit for the value of your return. Once the returned item is received, a gift certificate will be mailed to you.

If the item wasn’t marked as a gift when purchased, or the gift giver had the order shipped to themselves to give to you later, we will send a store credit to the gift giver and he will find out about your return.

Shipping

To return your product, you should mail your product to:Evolution Bikes, Cyttir Lane,Bangor,Gwynedd,LL57 4DA.

You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable. If you receive store credit or a refund, the cost of return shipping will be deducted from your store credit or refund.

Your refund will be processed once the items have been inspected once returned to us. All items must be retuned in as new condition for a full refund,.

Depending on your location, the time it may take for your exchanged product to reach you, may vary.

Trek Rail 9.8 XT Electric Mountain Bike in Lava Red

Season:2024

Brand:Trek

Code:37027RED

The Rail 9.8 is a long-travel carbon e-MTB that rips like the beefiest trail rigs and powers you right back up the mountain.

You get upgraded everything, including the frame for maximum fun on the gnarliest runs. You also get Bosch’s latest tech with the smart system Performance Line CX that has a longer-range 750 Wh battery and cool features that take your ride to the next level like activity tracking, navigation and Bluetooth connectivity. The new System Controller sits almost flush for a sleek look and Mini Remote is discreet and intuitive.
Technical Information
  • Frame
    OCLV Mountain Carbon main frame, 1.8'' lower head tube, Bosch System Controller-compatible, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9 mm seat tube, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru-axle, 150 mm travel
  • Fork
    RockShox ZEB Select+, DebonAir spring, Charger 3 RC2 damper, 1.8" oversized tapered steerer, eMTB optimised crown, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel
  • Shock
    RockShox Super Deluxe Select+ RT, 230 mm x 57.5 mm
  • Max compatible fork travel
    170 mm (580 mm axle-to-crown)
  • Wheels
  • Wheel front
    Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
  • Wheel rear
    Bontrager Line Comp 30, Tubeless-Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle
  • Skewer rear
    Bontrager Switch thru-axle, removable lever
  • Tyre
  • Size:S, M, L, XL
    Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
  • Size:S, M, L, XL
    Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
  • Tyre part
    Bontrager TLR sealant, 180 ml/6 oz
  • Rim strip
    Bontrager TLR
  • Max tyre size
    Frame: 29x2.60", Fork: See manufacturer
  • Shifter
    Shimano XT M8100, 12-speed
  • Rear derailleur
    Shimano XT M8100, long cage
  • Crank
    E*thirteen E*spec Plus, 165 mm length
  • Chainring
    E*thirteen E*spec, 34T alloy, 55 mm chainline
  • Cassette
    Shimano XT M8100, 10-51, 12-speed
  • Chain
    Shimano XT M8100, 12-speed
  • Pedal
    VP-536 nylon platform
  • Max. chainring size
    1x: 34T
  • Saddle
    Bontrager Arvada, austenite rails, 138 mm width
  • Seatpost
  • Size:S
    Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length
  • Size:M
    Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 34.9 mm, 440 mm length
  • Size:L
    Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 34.9mm, 485 mm length
  • Size:XL
    Bontrager Line Elite Dropper, 200 mm travel, MaxFlow, internal routing, 34.9mm, 550 mm length
  • Handlebar
    Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
  • Grips
    Bontrager XR Trail Elite, nylon lock-on
  • Stem
    Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 45 mm length
  • Brake
    Shimano XT M8120 4-piston hydraulic disc
  • Brake rotor
    Shimano RT76, 6-bolt, 203 mm
  • Rotor size
    Max brake rotor sizes: Front see fork manufacturer, rear 200 mm
  • Battery
  • Size:S
    Bosch PowerTube 625Wh, smart system
  • Size:M, L, XL
    Bosch PowerTube 750Wh, smart system
  • Charger
    Bosch standard 4A, 230V, smart system
  • Controller
  • Size:S, M, L, XL
    Bosch System Controller BRC3100, smart system
  • Size:S, M, L, XL
    Bosch Mini Remote BRC3300, smart system, 22.2 mm
  • Motor
    Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
